Industrial Blow Molding Machines | SICEMAR - MP55D, MP70D, MP80D, MP70FD, MP80FD, MP100FD

Complete Digital Catalog

Download the complete PDF catalog — overview of all 16 models + technical details identical to each product page.

Generate Catalog PDF

Classic Model

D Series — Direct clamping structure with tie bars

MP55D

Classic

MP55D

Continuous Extrusion Blow Molding Machine

Automatic blow molding machine suitable for: consumer packaging (detergent bottles, food, cosmetics, household chemicals), industrial packaging (stackable drums, water jugs, pesticides, lubricating oil), pharmaceutical packaging and other hollow products.

Max Volume: 2L

Table: Double

Head: 1 to 6

Clamping: Direct Clamping

Multilayer: Up to 6 layers

Level Viewer: Yes

3 or 4 direct clamping tie bars Graphite-copper bushing on the tie bars Simple structure, easy installation

MP70D

Classic

MP70D

Continuous Extrusion Blow Molding Machine

Automatic blow molding machine suitable for: consumer packaging (detergent bottles, food, cosmetics, household chemicals), industrial packaging (stackable drums, water jugs, pesticides, lubricating oil), pharmaceutical packaging and other hollow products.

Max Volume: 5L

Table: Double

Head: 1 to 6

Clamping: Direct Clamping

Multilayer: Up to 6 layers

Level Viewer: Yes

3 or 4 direct clamping tie bars Linear guide + tie bar on carriage movement Compatible with all extrusion systems

MP80D

Classic

MP80D

Continuous Extrusion Blow Molding Machine

Automatic blow molding machine suitable for: consumer packaging (detergent bottles, food, cosmetics, household chemicals), industrial packaging (stackable drums, water jugs, pesticides, lubricating oil), pharmaceutical packaging and other hollow products.

Max Volume: 10L

Table: Double

Head: 1 to 6

Clamping: Direct Clamping

Multilayer: Up to 6 layers

Level Viewer: Yes

3 or 4 direct clamping tie bars No operating environment limitations Stable and durable performance

Advanced Model

FD Series — Toggle clamping, double table and linear guide

MP70FD

Advanced

MP70FD

Continuous Extrusion Blow Molding Machine

Automatic blow molding machine with high-performance toggle-type clamping system. Suitable for: consumer packaging, industrial packaging (drums, jugs, bottles), pharmaceutical packaging (medicinal vials, BFS), and other high-precision hollow products.

Max Volume: 5L

Table: Double

Head: 1 to 6

Clamping: Toggle

Linear Guide: Yes

Multilayer: Up to 6 layers

Level Viewer: Yes

Toggle clamping system Linear guide on carriage movement Uniform force distribution across the platens

MP80FD

Advanced

MP80FD

Continuous Extrusion Blow Molding Machine

Automatic blow molding machine with toggle-type clamping system. Single or double stage design. Ideal for multi-cavity production and high-volume bottles with superior neck finish precision.

Max Volume: 10L

Table: Double

Head: 1 to 6

Clamping: Toggle

Linear Guide: Yes

Multilayer: Up to 6 layers

Level Viewer: Yes

Toggle clamping system Linear guide on carriage movement High-speed proportional directional valve

MP100FD

Advanced

MP100FD

Continuous Extrusion Blow Molding Machine

Large-scale machine with toggle-type clamping system for high-volume production. Maximum clamping capacity and neck finish precision. Compatible with all available extrusion systems.

Max Volume: 20L

Table: Double

Head: 1 to 4

Clamping: Toggle

Linear Guide: Yes

Multilayer: Up to 6 layers

Level Viewer: Yes

Toggle clamping system Linear guide on carriage movement Large-scale production

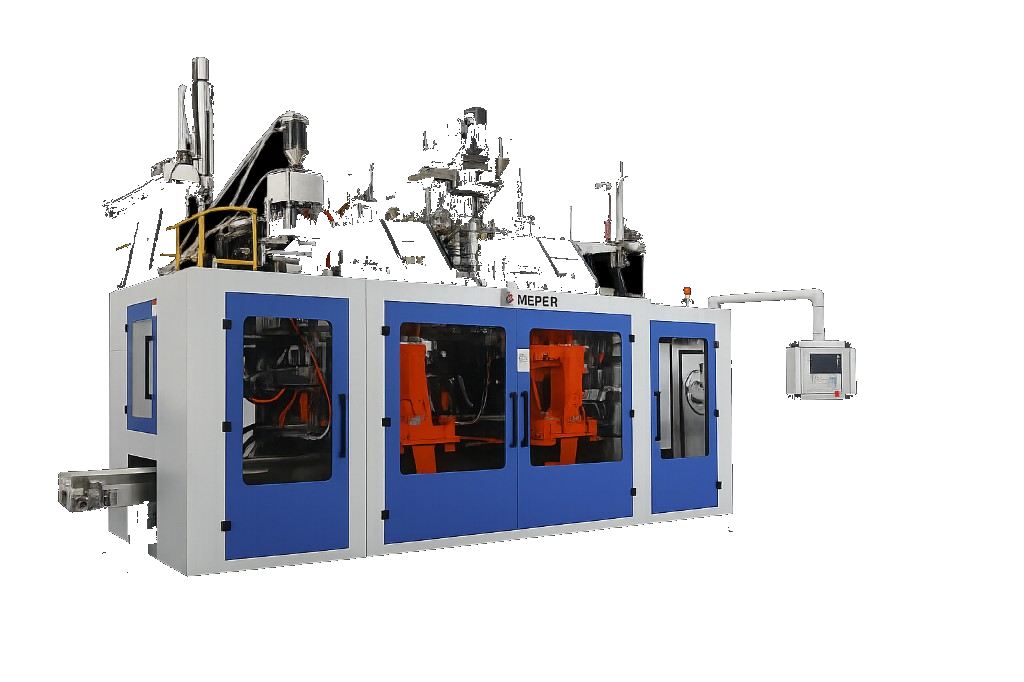

MP110FD

Advanced

MP110FD

Continuous Extrusion Blow Molding Machine

Large advanced machine with toggle clamping for jugs, containers and industrial packaging. Maximum capacity of 30 liters (single head) or 10 liters (double head), with high neck finish precision.

Max Volume: 30L

Table: Double

Head: 1 to 2

Clamping: Toggle

Linear Guide: Yes

Multilayer: Up to 6 layers

Level Viewer: Yes

Up to 30 liters with single head Large-scale toggle clamping Linear guide on carriage movement

Single Station / IML

FS Series — Toggle clamping, single table and linear guide

MP70FS

IML

MP70FS

Continuous Extrusion Blow Molding Machine

Single station design with high-precision processing configurations. Separate post-cooling and hydraulic deflashing system. Compatible with IML (in-mold labeling) function and production of bottles with angled necks.

Max Volume: 10L

Table: Single

Head: 1 to 8

Clamping: Toggle

Linear Guide: Yes

Multilayer: Up to 6 layers

Level Viewer: Yes

Toggle clamping system Linear guide on carriage movement Single station design

MP80FS

IML

MP80FS

Continuous Extrusion Blow Molding Machine

Single station design with expanded capacity. Separate post-cooling and hydraulic deflashing. Ergonomic layout, safe and convenient for operators. Meets high-production demands with superior quality requirements.

Max Volume: 20L

Table: Single

Head: 1 to 8

Clamping: Toggle

Linear Guide: Yes

Multilayer: Up to 6 layers

Level Viewer: Yes

Toggle clamping system Linear guide on carriage movement Separate post-cooling

MP90FS

IML

MP90FS

Continuous Extrusion Blow Molding Machine

Largest model in the FS series with a maximum capacity of 30L. Single station design with high-precision processing. Ideal for large-scale production of bottles with angled necks and in-mold labeling.

Max Volume: 30L

Table: Single

Head: 1 to 8

Clamping: Toggle

Linear Guide: Yes

Multilayer: Up to 6 layers

Level Viewer: Yes

Toggle clamping system Linear guide on carriage movement Largest capacity in the FS series

Accumulator Model

A Series — Accumulator type blow molding machine, single station and single die head

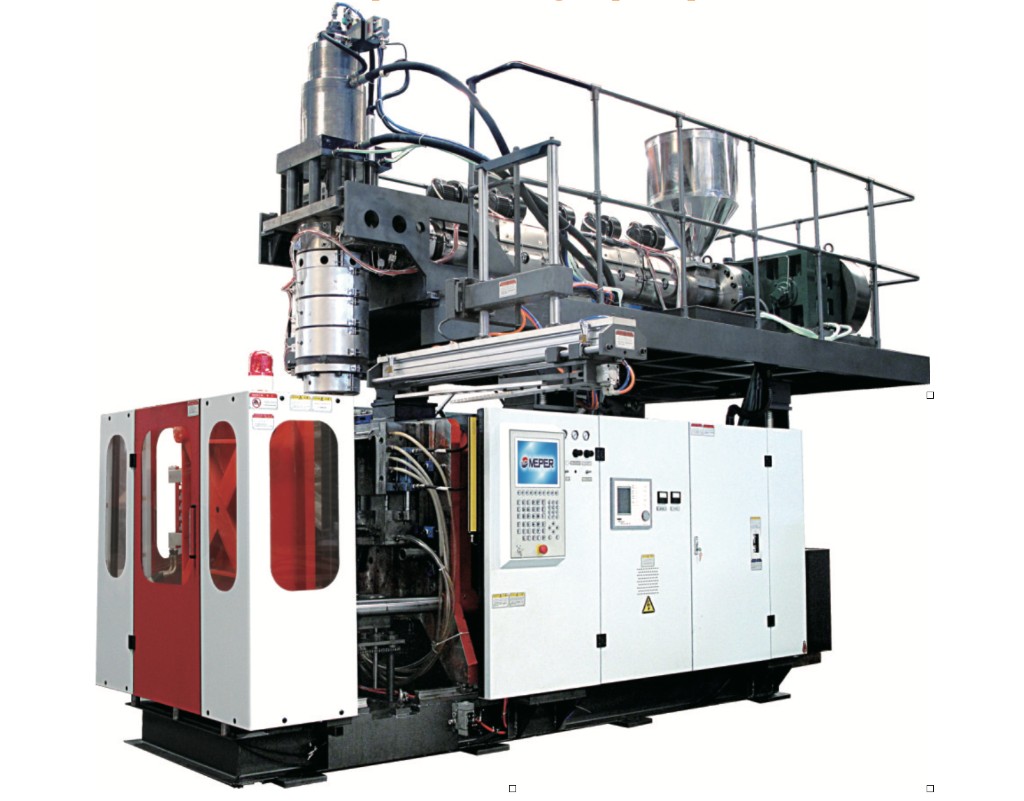

MP80-A1

Accumulator

MP80-A1

Accumulator-Type Extrusion Blow Molding Machine

Accumulator-type blow molding machine for medium-volume container production on a single station. Ideal for jugs, containers and round drums in PE and PP, with a maximum capacity of 30 liters.

Max Volume: 30L

Table: Single

Head: 1

Clamping: 215 kN

Multilayer: Single layer

Material: PE / PP

Single station, single head and single layer 120–140 kg/h plasticizing (HDPE) MOOG 100-point parison controller

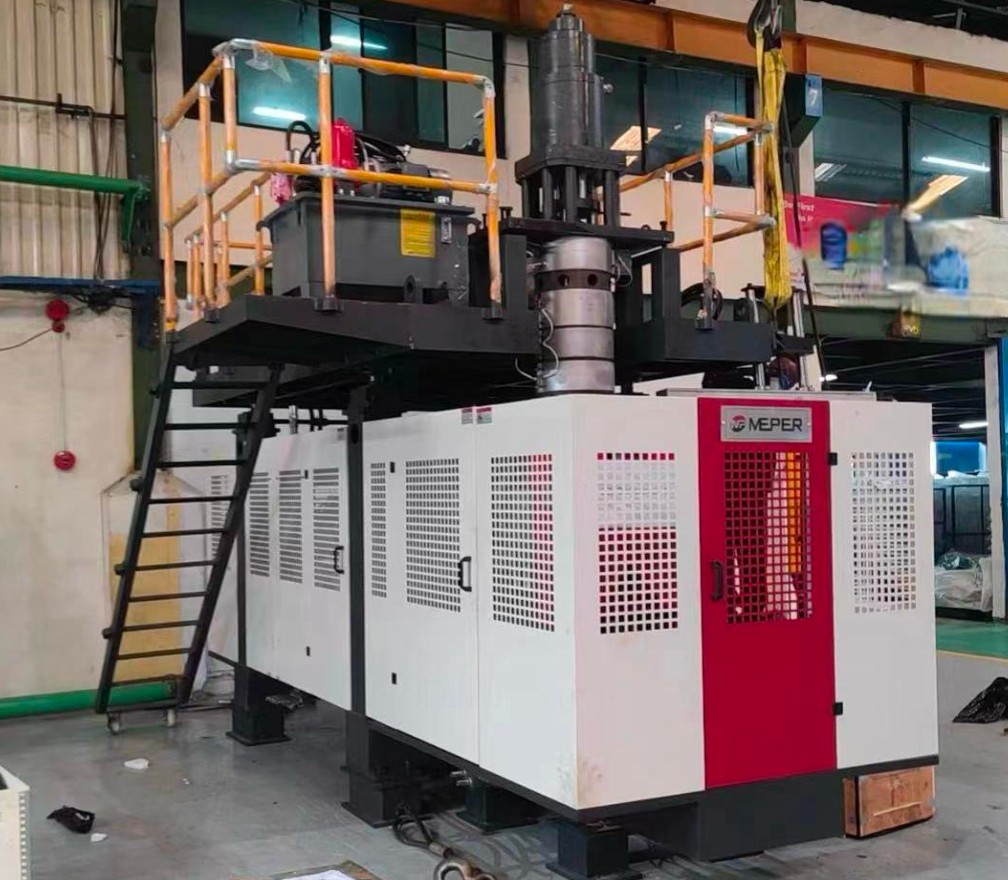

MP90A-1

Accumulator

MP90A-1

Accumulate Type Extrusion Blow Molding Machine

Accumulator-type blow molding machine for medium to large-volume container production on a single station. Ideal for jerry cans, drums and industrial PE and PP packaging, with a maximum capacity of 60 liters.

Max Volume: 60L

Table: Single

Head: 1

Clamping: 280 kN

Multilayer: Single layer

Material: PE / PP

Single station, single die head and single layer Plasticizing capacity of 130–160 kg/h (HDPE) MOOG wall thickness controller 100 points

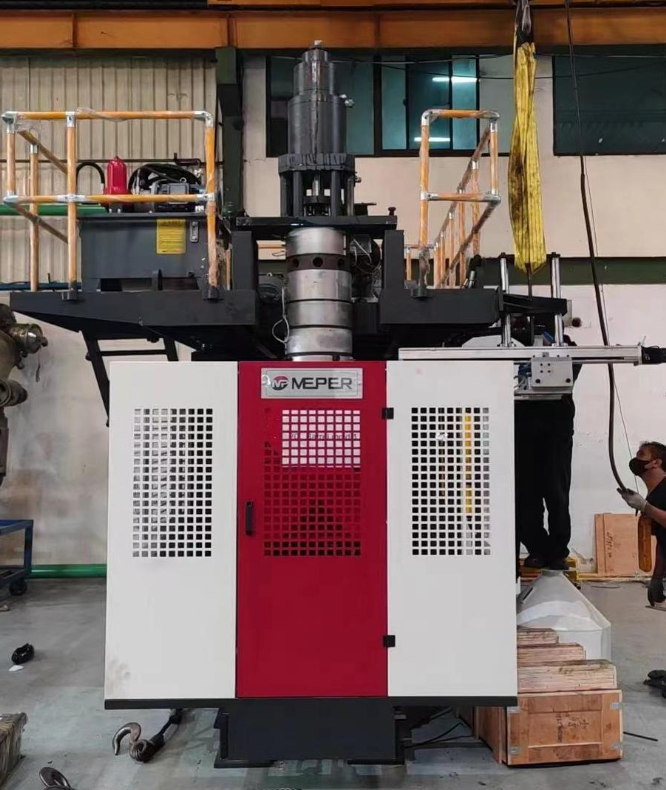

MP100-A

Accumulator

MP100-A

Accumulate Type Extrusion Blow Molding Machine

Accumulator-type blow molding machine for large-volume container production on a single station. Ideal for jerry cans, drums, barrels and industrial PE and PP packaging, with a maximum capacity of 100 liters.

Max Volume: 100L

Table: Single

Head: 1

Clamping: 440 kN

Multilayer: Single layer

Material: PE / PP

Single station, single die head and single layer Plasticizing capacity of 160–200 kg/h (HDPE) MOOG wall thickness controller 200 points

Electric Line

AE Series — All-electric blow molding machine, double station and double die head

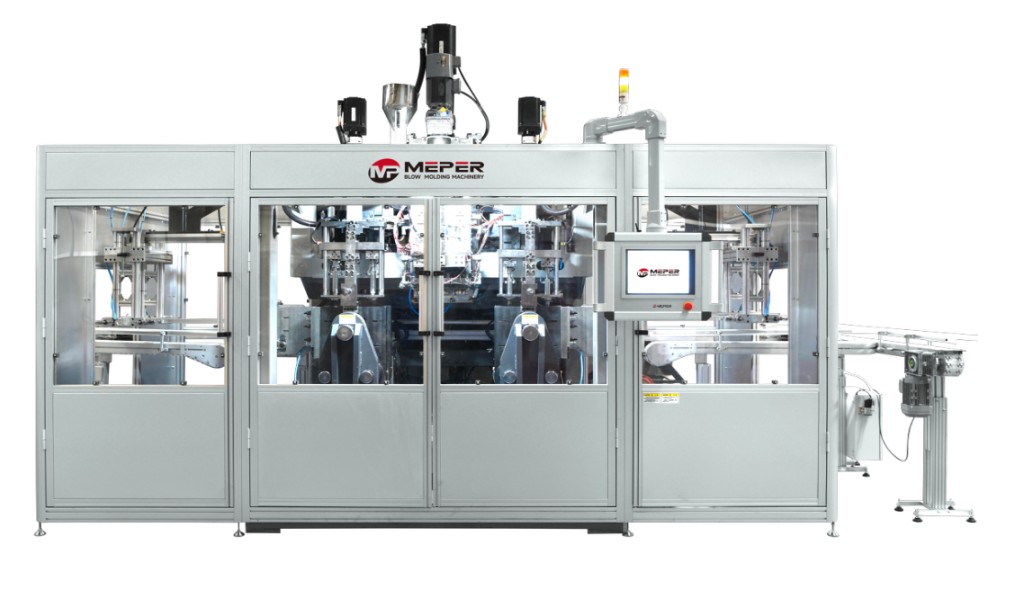

MP75AE-2

Electric

MP75AE-2

All-Electric Extrusion Blow Molding Machine

Fully electric machine with double station and two single-layer die heads (optional single head). Ideal for bottles, flasks and consumer PE and PP packaging, with a maximum capacity of 1 liter and B&R parison control.

Max Volume: 1L

Table: Double

Head: 2

Clamping: 150 kN

Multilayer: Single layer

System: All electric

Double station with 2 die heads (optional 1) B&R control with integrated parison Hot cutter and product/scrap conveyors

MP90AE-1

Electric

MP90AE-1

All-Electric Extrusion Blow Molding Machine

Fully electric machine with single station and single single-layer die head. Ideal for bottles, jugs and consumer packaging in PE and PP, with a maximum capacity of 5 liters and integrated B&R parison control.

Max Volume: 5L

Table: Single

Head: 1

Clamping: 220 kN

Multilayer: Single layer

System: All electric

Single station with single die head Ø 90 mm screw — 120 kg/h plasticizing B&R control with integrated parison

MP90AE-2

Electric

MP90AE-2

All-Electric Extrusion Blow Molding Machine

Fully electric machine with double station and two single-layer die heads (optional single head). Ideal for bottles, jugs and consumer packaging in PE and PP, with a maximum capacity of 5 liters and integrated B&R parison control.

Max Volume: 5L

Table: Double

Head: 2

Clamping: 220 kN

Multilayer: Single layer

System: All electric

Double station with 2 die heads (optional 1) Ø 90 mm screw — 120 kg/h plasticizing B&R control with integrated parison

Need Help Choosing?

Our technical team will analyze your needs and recommend the ideal machine.

Talk to a Specialist
